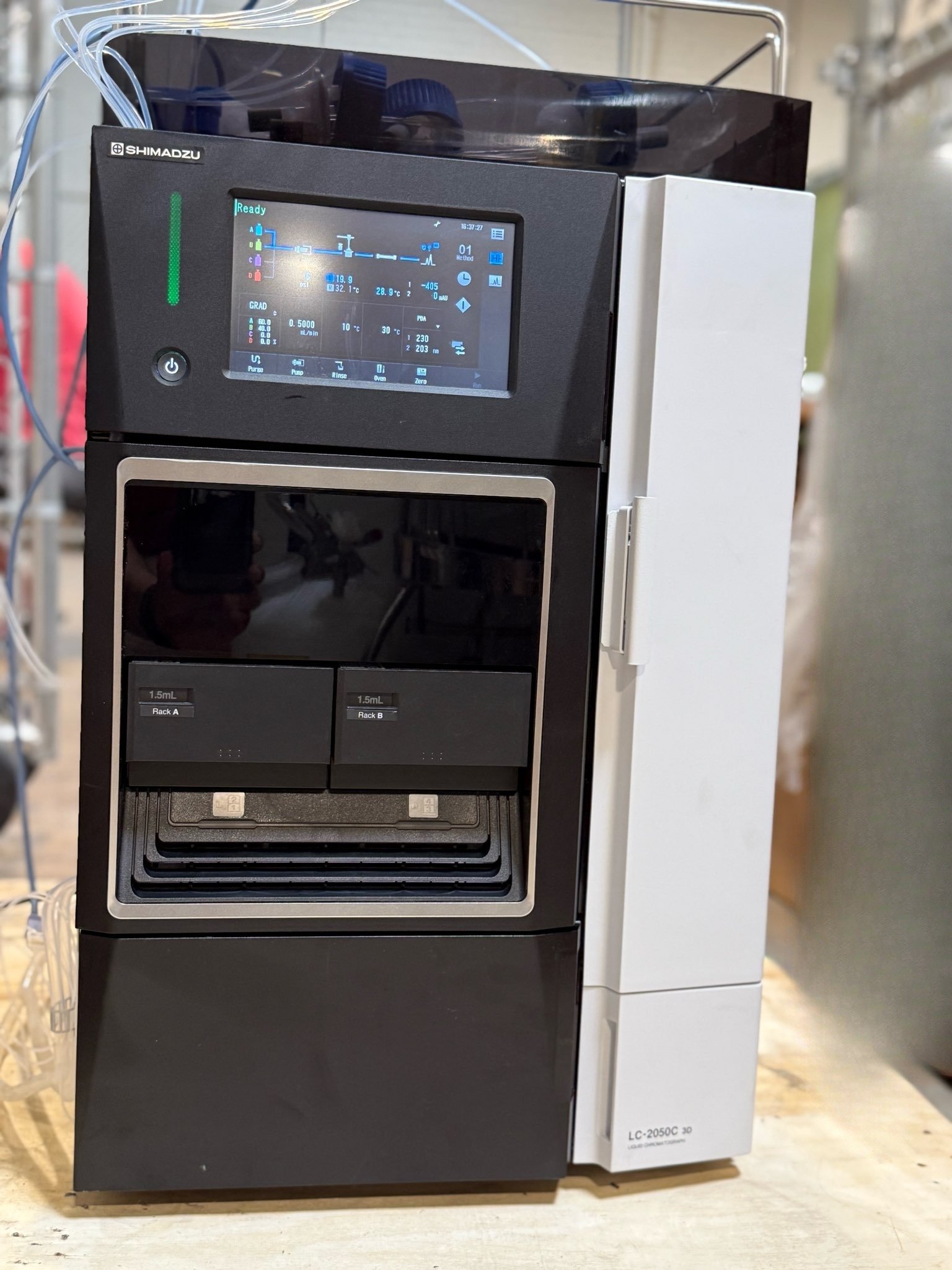

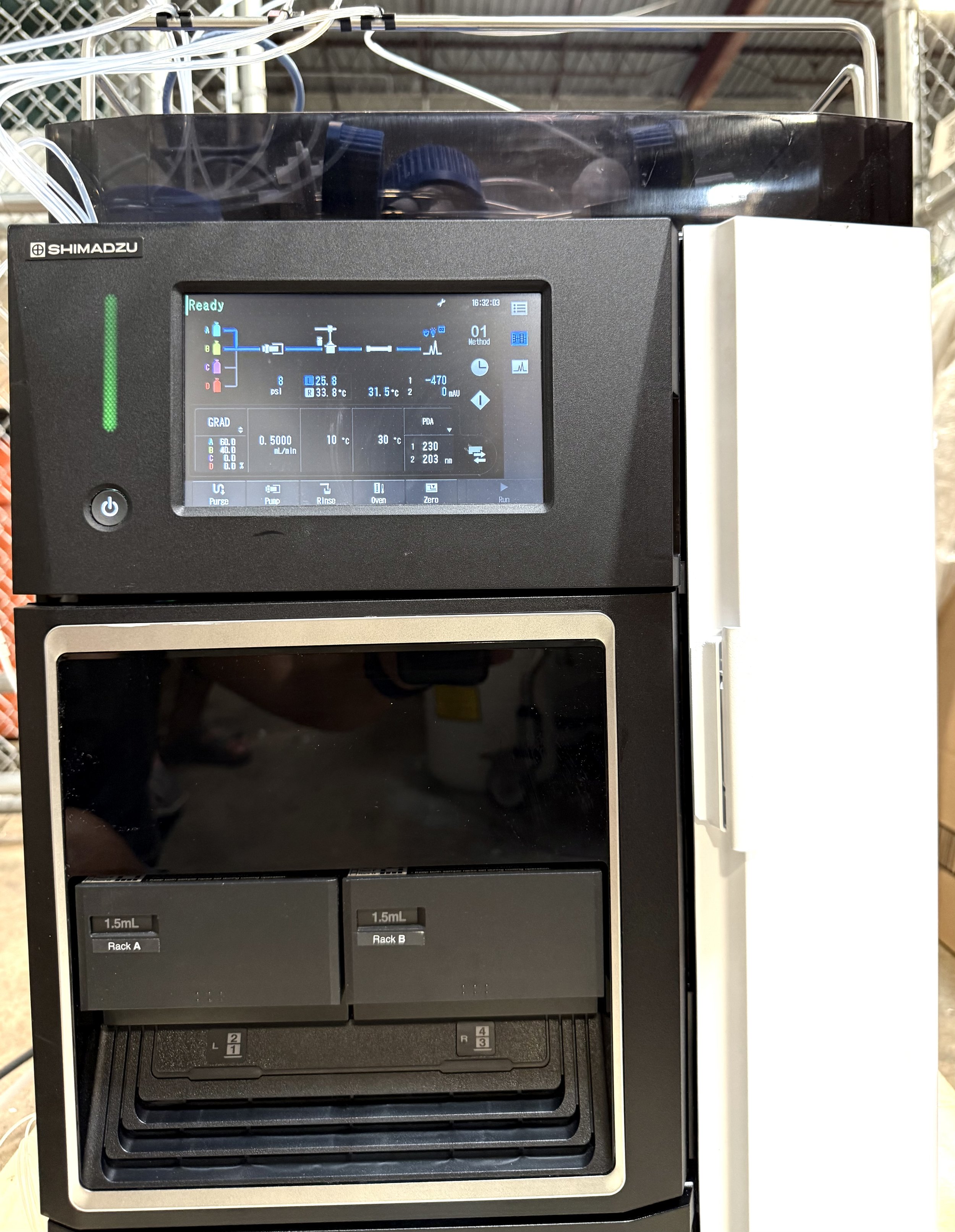

The LC-2050C 3D is a compact, high-performance photodiode array (PDA) detector model engineered to deliver maximum reliability and productivity while conserving valuable lab space.
Core Features
Detector Type: Integrated PDA covering 190–800 nm with 1024 elements for broad and detailed spectral analysis.
Light Sources: Standard deuterium lamp with an optional tungsten lamp for expanded wavelength applications.
Sampling Rate: Up to 100 Hz, supporting high-speed detection needs.
Low Baseline Noise & Drift: Provides precise data, maintaining accuracy even at very low analyte concentrations.
Pump & Flow Capabilities
Quaternary Low-Pressure Gradient System for flexible solvent mixing.
Flow Rate Range: From 0.0001 to 10 mL/min accommodates a wide variety of methods.
Maximum Pressure: Up to 70 MPa within the 0.0001–3 mL/min range.
Accuracy & Precision: Exceptional flow rate control ensures reproducible and consistent results.
Injection System
Volume Range: 0.1 to 50 µL standard capacity, expandable to 2,000 µL for versatile application needs.
Injection Cycle Time: Rapid cycles as fast as 14 seconds improve throughput.
Ultra-low Carryover: Below 0.0025%, essential for sensitive bioanalytical assays.
Column Oven
Temperature Range: Precise control from 10°C to 90°C supports method flexibility.
Capacity: Accommodates six 100 mm or three 300 mm columns, maximizing experimental options
User Experience & Utility

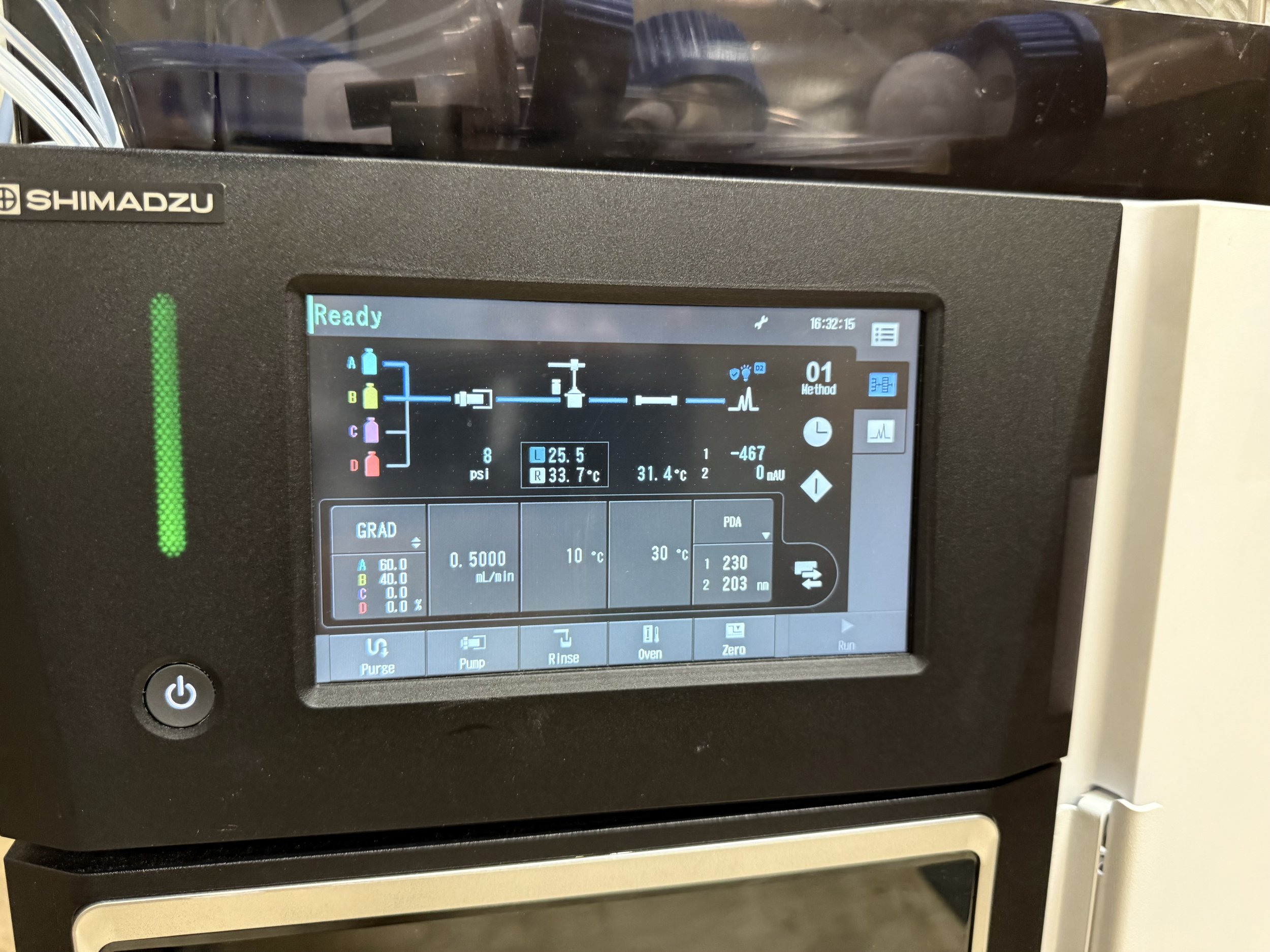

Real-Time Monitoring: Chromatogram display integrated on a user-friendly touchscreen that operates independently from a connected PC.
Integrated Design: Allows for optional detector additions without increasing the instrument’s footprint, saving lab space.
Auto Shutdown Feature: Decreases standby power consumption by over 95%, contributing to energy efficiency.
The LC-2050C 3D is designed for labs requiring dependable, precise, and space-conscious chromatography solutions, combining robust performance with user-centered functionality.
